Tackle the most challenging dispensing applications with our High-Performance 360 Degree Aerosol Valve With Actuator, the ultimate solution for high-viscosity materials, foams, and heavy-duty sealants. This robust dispensing system is built around an extra-large orifice rotating valve mechanism that empowers the actuator to maintain flawless 360-degree operation even with the thickest formulations. Engineered to prevent clogging, it effortlessly handles expanding polyurethane foams, thick adhesives, silicone sealants, and particulate-laden coatings. The powerful any-direction spraying capability allows users to apply these demanding materials from any angle--whether filling a ceiling crack overhead, sealing a joint sideways, or applying undercoating upside-down--without interruption or product failure. Constructed from reinforced polymers and chemically resistant components, this valve withstands the immense pressure and aggressive nature of high-performance formulations. It is the industry's go-to choice for construction, automotive, and industrial maintenance professionals who refuse to compromise on performance and reliability.

Key Features

Heavy-duty 360 Degree Aerosol Valve features an enlarged fluid path to effortlessly manage high-viscosity foams and sealants without clogging.
The reinforced actuator delivers positive, reliable engagement with high-force applications, even with gloved hands.
Powerful any-direction spraying capability allows for application of expanding foams and thick sealants in overhead and inverted positions.
Engineered to withstand high internal pressures generated by expanding foam and gas-propelled products.
Chemically resistant dip tube and seal materials ensure compatibility with reactive formulations like polyurethane and solvents.

Application Scenario

A construction insulator needs to fill a deep, overhead cavity with expanding foam. Using a can with this valve, they rotate the actuator downward, insert the extended straw into the cavity, and spray upward. The valve reliably dispenses the foam without clogging, even when the can is inverted, filling the space completely and efficiently.

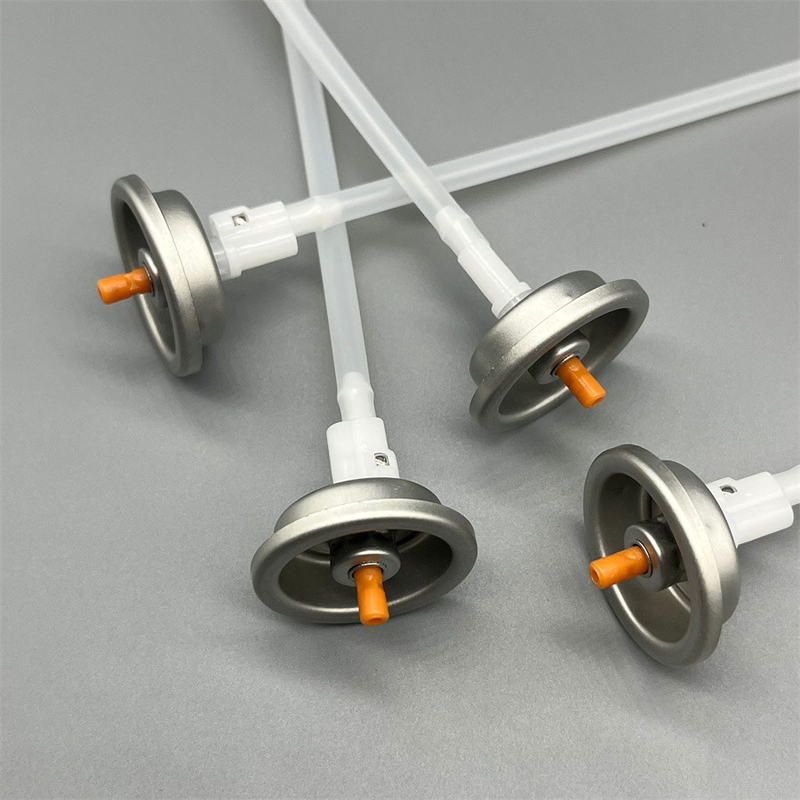

Component Details

Component	Part No.	Part Description
Mounting cup	1-F2	Both sides with clear lacquered tinplate, with down dimples
Outer gasket	1-G1	Buna
Inner gasket	1-B4	Neoprene
Stem	1-A7	Orange color, double orifice 2X diameter 0.51mm
Spring	1-C1	Stainless steel
Housing	1-D1	All direction valves housing tail orifice: diameter 2.0mm with stainless steel ball white

Frequently Asked Questions

How does this valve prevent clogging with fast-curing materials like foam?

It features an optimized, self-cleaning seal design and an enlarged orifice that minimizes the surface area where material can set and harden, significantly reducing the risk of clogging.

What is the maximum viscosity this valve can handle?

While performance varies by formulation, this valve is specifically engineered to handle viscosities significantly higher than standard aerosol valves, making it suitable for products up to the consistency of heavy gels.

Is the valve compatible with the high pressure generated by expanding foam?

Yes, the valve body, seals, and actuator are all reinforced and tested to withstand the elevated pressures that are characteristic of expanding polyurethane foam products.

Can an extended straw be attached for deep cavity filling?

Absolutely. The valve is designed to securely lock onto various lengths of application straws or tubes, providing the reach needed for specialized applications in construction and repair.

How do you ensure reliability with abrasive materials containing particulates?

We utilize wear-resistant materials in the fluid pathway and employ hardened valve seats to withstand the abrasion caused by particles in suspensions, ensuring longevity and consistent performance.
